Backhoes for tractors

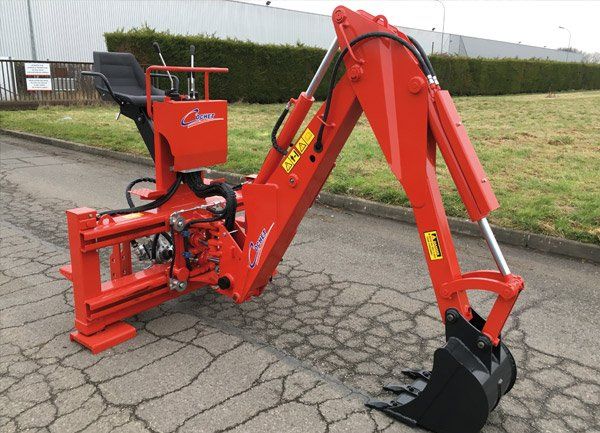

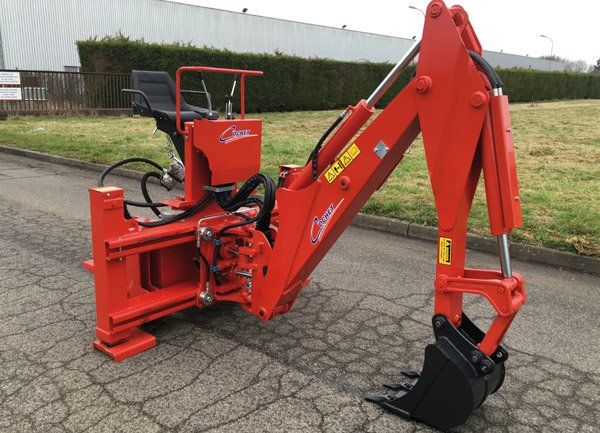

Backhoes SP 220, SP 250, SP 260 and SP 320

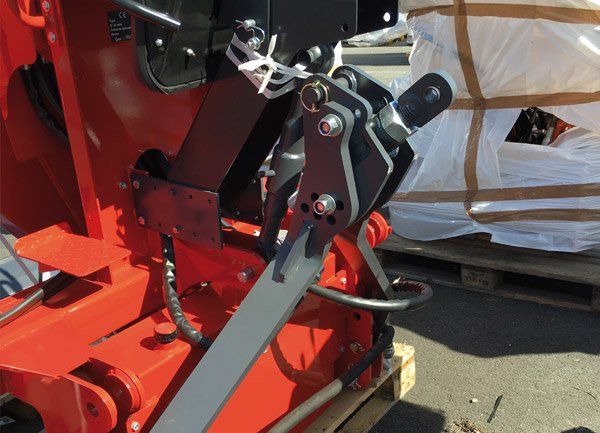

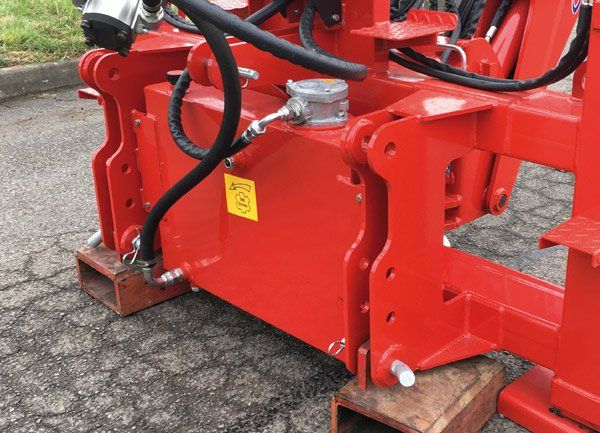

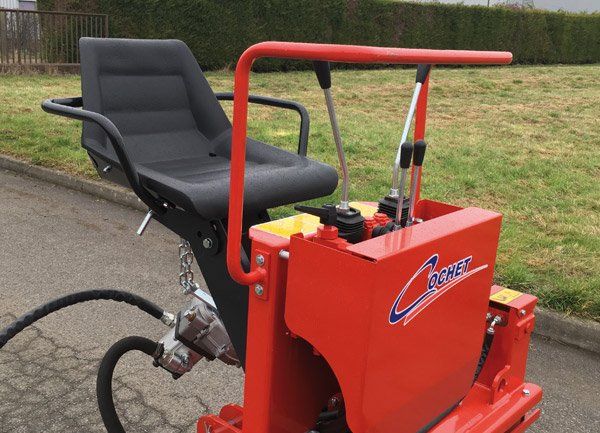

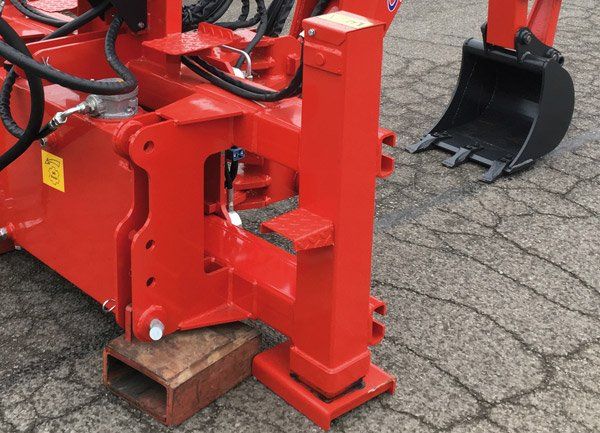

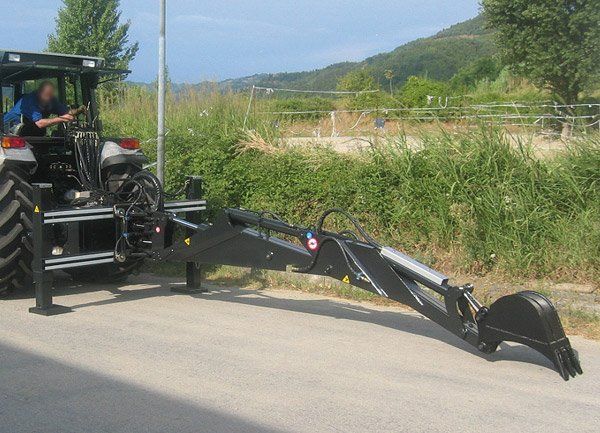

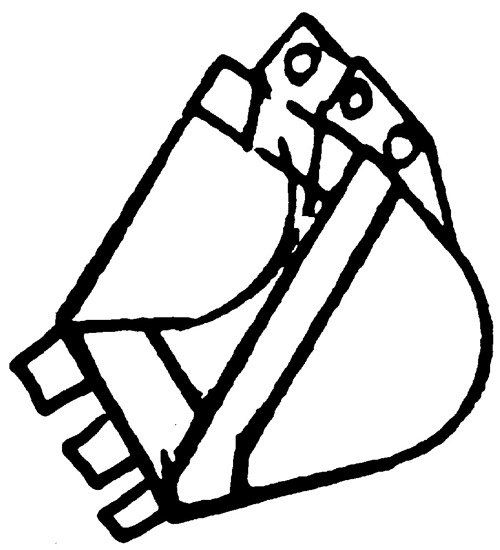

All our models are deportable and adaptable according to their power on tractors from 14hp to more than 150hp. If our excavators can be adapted at three points on the rear linkage of tractors, we strongly recommend taking the option of the "semi-rigid hitch" which will block the backhoe vertically. This will protect your tractor and keep the full power of the backhoe. The hydraulic unit, driven by the tractor's power take-off, is connected to a large capacity tank to prevent the oil from overheating and provides high power throughout the work. The seat and controls are ergonomic. The 2 mono-levers control the various functions as on a mini-excavator. The 2 crutches are controlled individually in order to restore balance on unstable ground. A valve releases the blocking of the lateral offset. The tearing force of these excavators varies according to the model from 1 to 3 tons. This high power is guaranteed by the cross-use of quality hydraulic components and judiciously placed reinforcements. The original ripping bucket is 30cm wide on the GP130, GP180 and SP180 models and 40cm on the other models and has interchangeable teeth. IMPORTANT: 2-year warranty on our booms and outriggers (if manufacturer's standards are respected). All our joints are case-hardened. All our axes are stopped. Our top-of-the-range distributors are equipped with 4 anti-shock valves ensuring the protection of the cylinders.
| Model | SP 220 | SP 250 | SP 260 | SP 320 |
|---|---|---|---|---|
| Stand height | 150mm | 150mm | 150mm | 150mm |
| Loading height | 1610mm | 1975mm | 2500mm | 2588mm |
| working depth | 2175mm | 2477mm | 2575mm | 3257mm |
| Max length of the arm unfolded on the ground | 2646mm | 3195mm | 3280mm | 3975mm |
| Dump height | 2491mm | 3012mm | 2975mm | 3700mm |
| Breakout force | 2T | 2T4 | 3T | 4T |
| Hydraulic central | Understood | Understood | Understood | |
| Hydraulic pump | 20l/mm | 30l/mm | 30l/mm | 30l/mm |
| full of oil | Made | Made | Made | Made |
| Pressure | 160 bars | 180 bars | 180 bars | 180 bars |

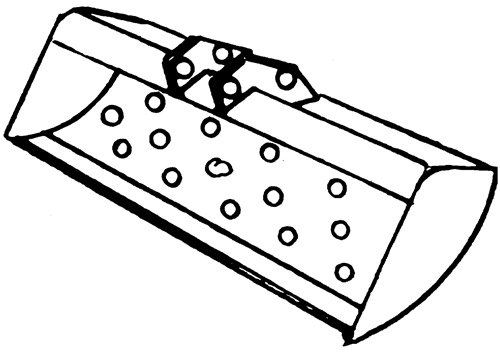

| Interchangeable teeth buckets | 0m40 | 0m40 | 0m40 | 0m40 |
| Weight | 550 kg | 600 kg | 700 kg | 1020 kg |
| Axial or offset as standard | Of mobile | Of mobile | Of mobile | Of mobile |
| Deportable to | 1m00 | 1m20 | 1m60 | 1m80 |

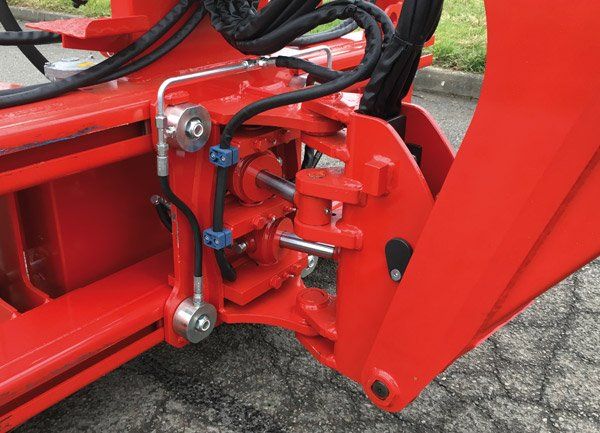

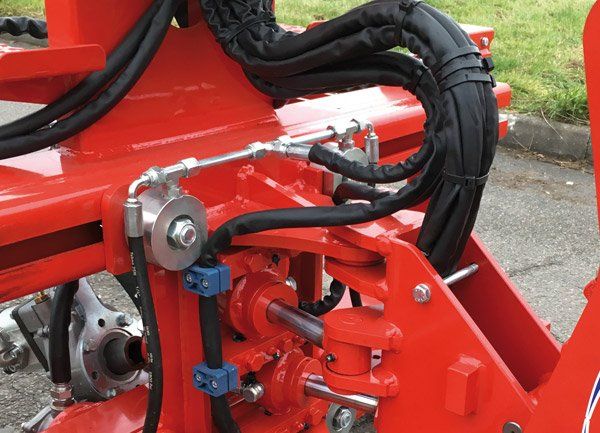

| Offset blocking | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
